Description

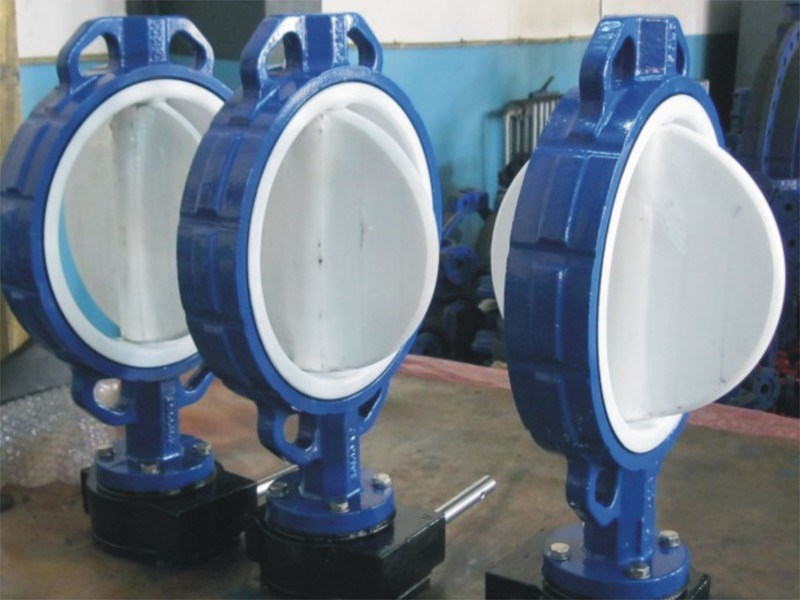

The Vatac fully Fluorine lined butterfly valve is designed for aggressive chemical and ultra-pure applications. Fluorine lined resists chemical attack from most known chemical compounds, and with a flexible liner design utilizing a full width, 360 degree, resilient back up liner offers bubble tight shut off in even the most demanding installations. Redundant shaft seals provide a tight, reliable seal to the environment. This is a “maintenance free” valve design which uses long life sleeve bearings and avoids the use of an adjustable packing gland.

The valve shall be a 90 turn clockwise to close, non-jamming, resilient seated valve for zero leakage service. The valve shall be torque seated and designed in such a manner that the disc can be rotated the seat with out the actuator. Also this valve enables the fluid perfect shut-off regardless of the flow direction.

Vatac Fluorine lined butterfly valves are with main Features as below:
» Lockable Lever
» Site maintenance
» Ease of automation
» Positive tight shut-off
» Optional top flanges to ISO 5211
» Qualified for both gaseous and liquid services
» Broad line of body and trim materials for a variety of medium service.
» ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202
» Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Satinless Steel, Alloy Steel, duplex steel and ect.
» Temperature: -20 Deg. C to 150 Deg.C
» Pressure Ratings: ANSI 150#, PN10, PN16
» Size Ranges: 2" to 24"-50mm to 600mm (Larger sizes upon request)
» Body Lining: PTFE, FEP, PFA and etc.
» Ends Connections: Wafer, Lugged, Double Flanged
» Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
