Forged Y Strainer

The Vatac Y Type Strainers are constructed from rugged castings that are machined to exacting specifications
OnLine Service
Skype Online PDF Download
【Prev Products】 【Next Products】
Description


The Vatac Y Type Strainers are constructed from rugged castings that are machined to exacting specifications. These bodies have drilled flanges that are in accordance with ASME B16.1. Alternatively to EN, DIN, BS or JIS Standards.

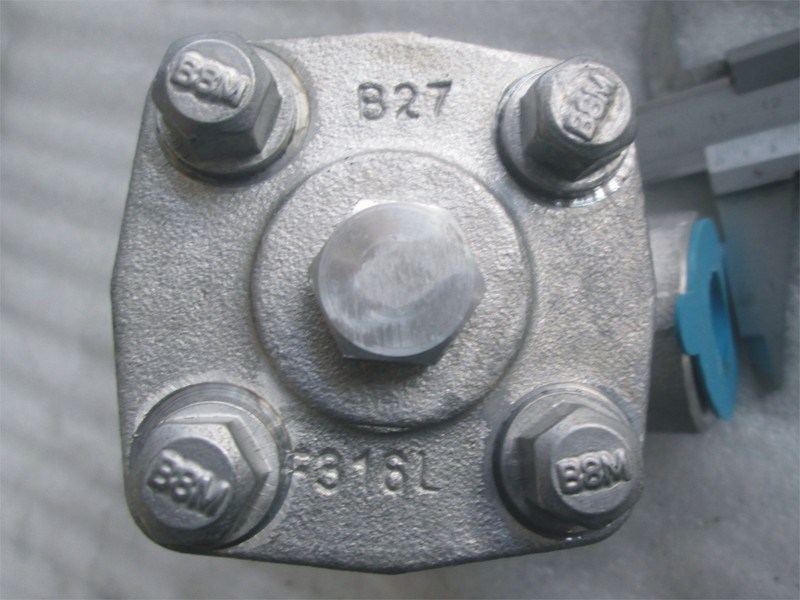

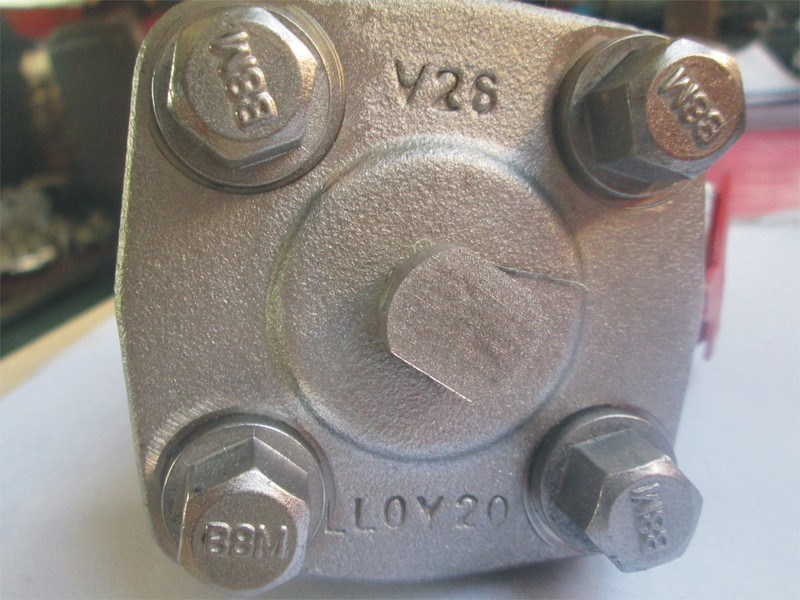

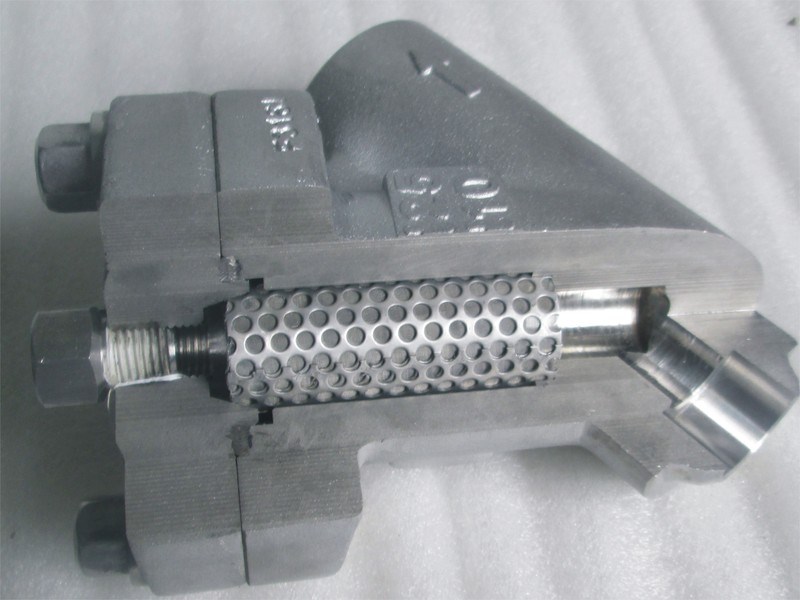

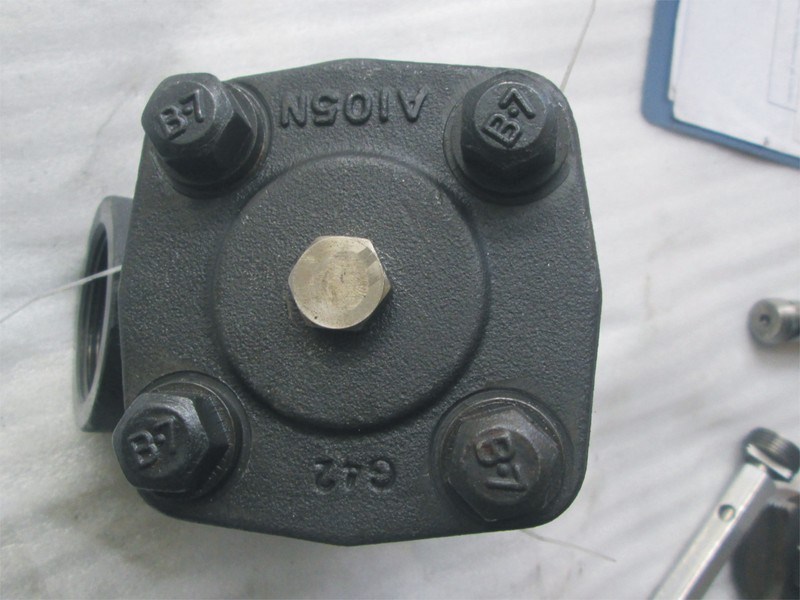

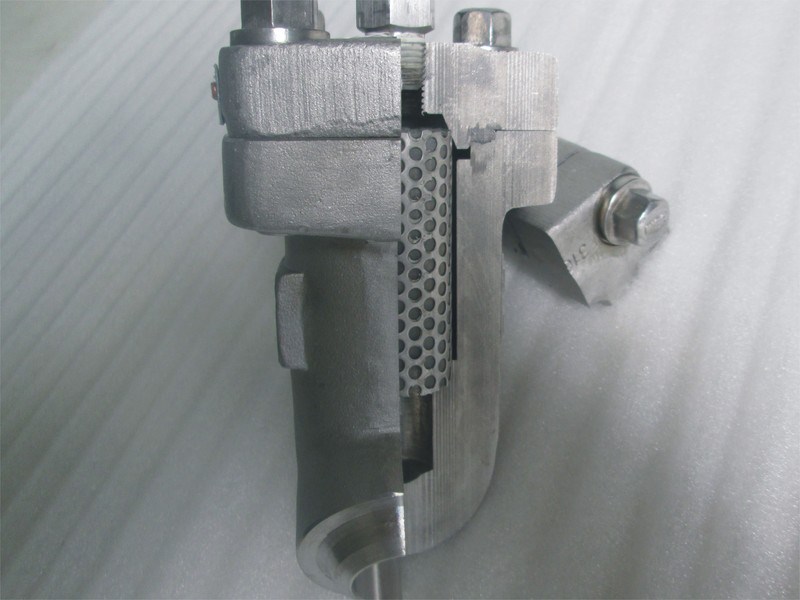

The Vatac Y Strainer features a machined groove in both the body and cover for proper screen alignment and to ensure accurate reseating when servicing is required. The gasket is a synthetic fiber that is compressed between the body and cover for maximum strength and durability. Upon request, The Vatac Y Type strainers can be furnished with a blow-off plug. Standard perforated 304 stainless steel screens are furnished for a maximum strength. Different size perforations and meshes are available in stainless steel, monel, and brass to meet specific media requirements. If the media is not indicated, screens for water will be supplied. Self cleaning is accomplished by opening the valve or drain plug connected to the blow-off port.

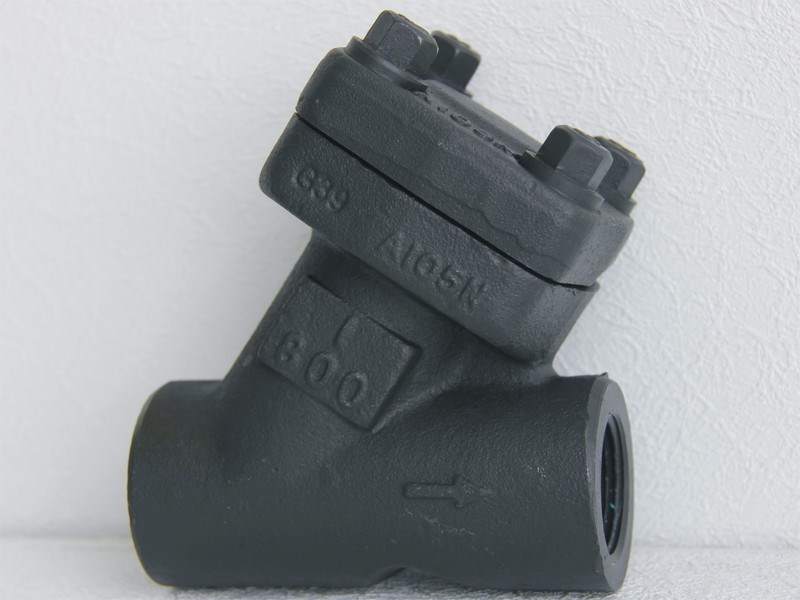

Forged Y Strainer take their name from their configuration. They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacauum conditions. They are intended for application where small amounts of solid particulate are expected and where clean-out will be infrequent. If solids will flush easily from the screen, and fluid can be exhausted to atmosphere, a blow-down valve on the drain port will allow clean-out without removal of screen, and without interrupting the process flow.
» Manufactured under ISO 9001:2008 Management System
» Size Ranges: 1/2” through 2”
» Pressure Ratings: ANSI #150 to 2500, PN16~PN420
» Standards compliance: ASME B16.34, DIN 3202, ASME B16.10, MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598, ASME B1.20.1, ASME B16.25, ASME B16.11 or equivalents
» Materials: Forged Carbon Steel, Forged Stainless Steel, Forged Duplex or Other Specials
» Ends Connections: Flanged (FF, RF, RTJ) , Screwed, Welded Ends to international standards
» Screen: Stainless Steel, Gr. 304 or 316
» Threaded Drain Plug Device
