Flange Weir Diaphragm Valve

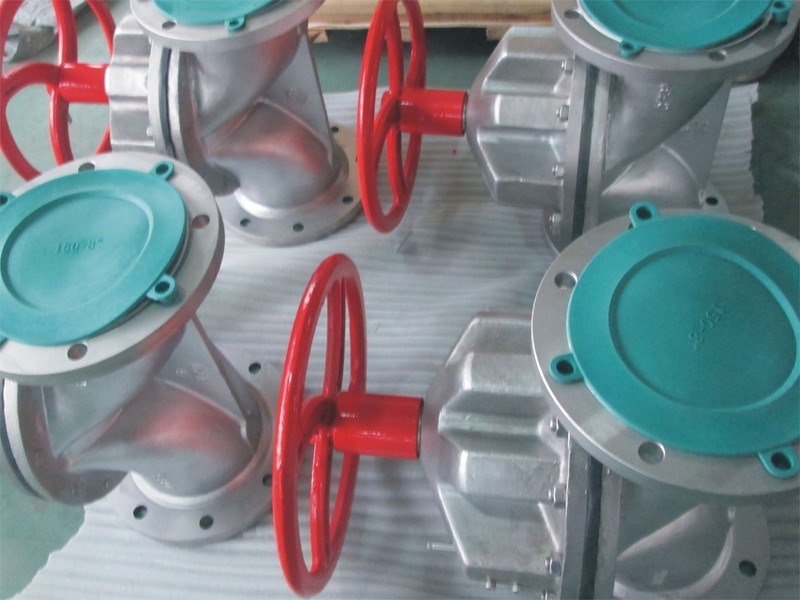

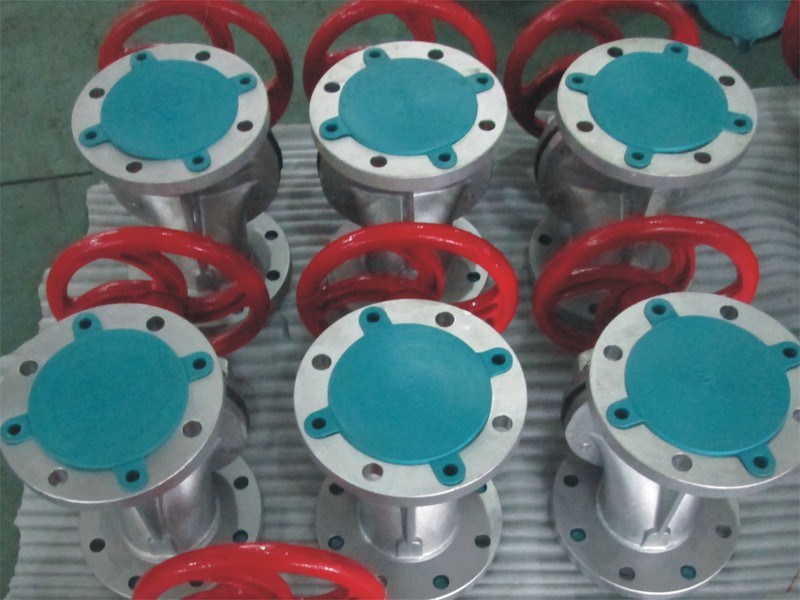

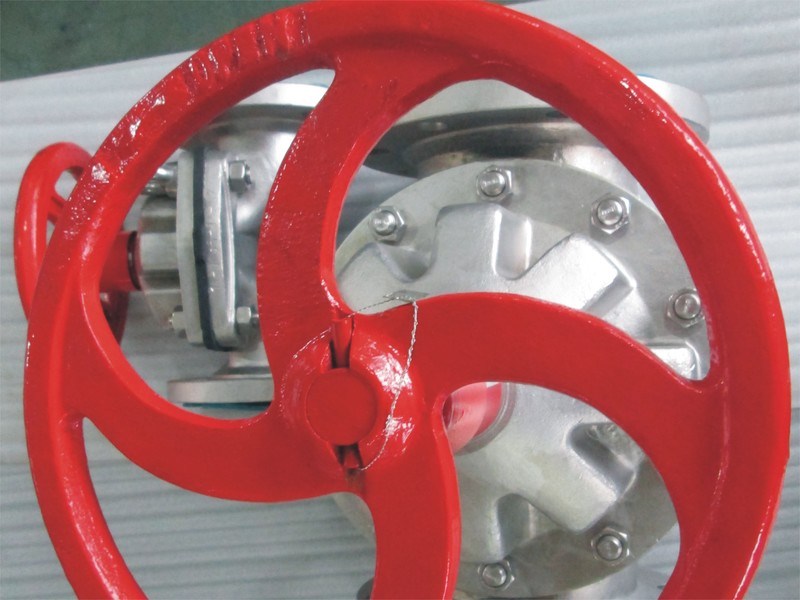

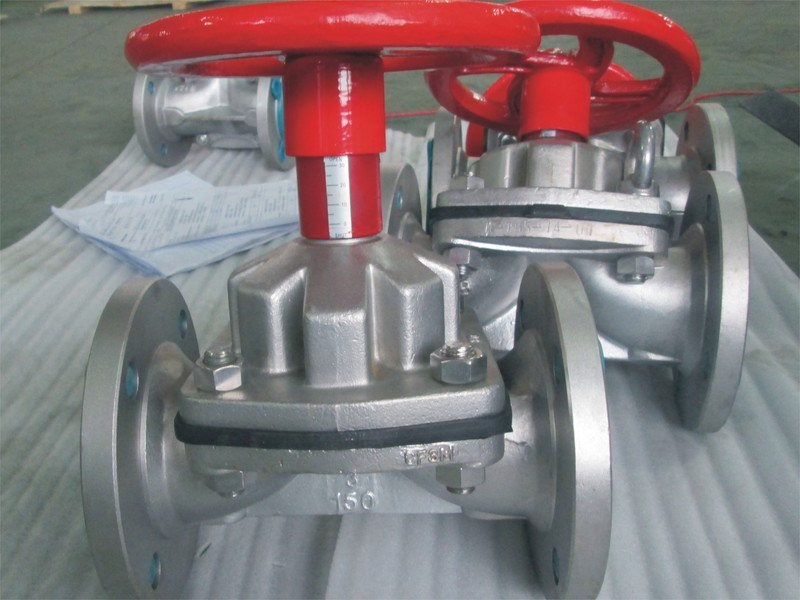

Vatac Flange Weir Diaphragm Valves in cast iron, ductile iron, cast steel, bronze gunmetal and stainless steel, Unlined or Lined Body
OnLine Service
Skype Online PDF Download
【Prev Products】 【Next Products】
Description

Vatac Flange Weir Diaphragm Valves in cast iron, ductile iron, cast steel, bronze gunmetal and stainless steel. Available with various body linings and diaphragms appropriate for a wide range of applications.

Standards Compliance and Design Features:
» Size Ranges: 1/2” through 14”
» Pressure Ratings: ANSI #125, #150, PN6, PN10, PN16
» Standards compliance: MSS SP-88, BS5156, ASME B16.34, DIN 3202, ASME B16.1, BS EN558, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598, BS 4504 or equivalents
» Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, or Other Specials
» Optional Lining: Natural Rubber, Butyl, EDPM, Hard Rubber and etc.
» Ends Connections: Flanged RF or FF, Screwed
» Optional Locking Device
» Position indicator
» Optional Direct Mounting to ISO 5211
» Regular Bore
» Handwheel, Electric or Pneumatic operated
